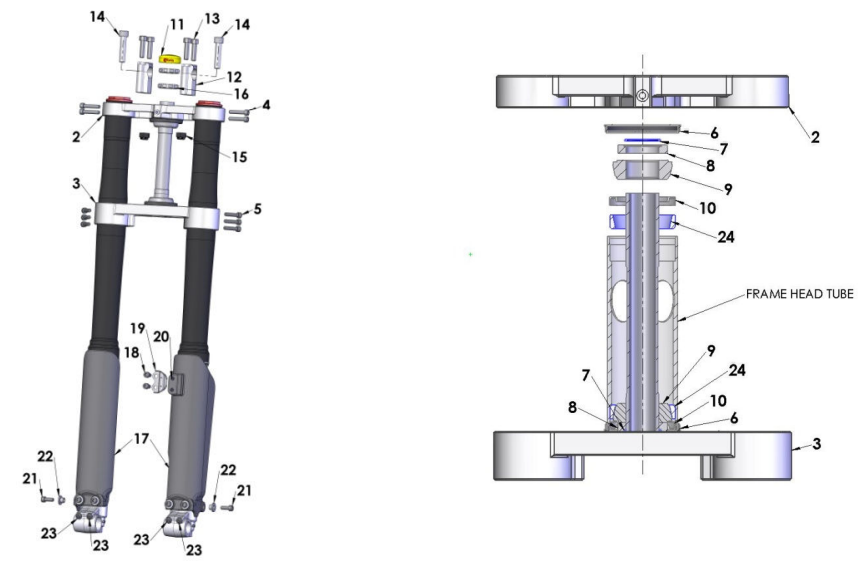

2015 Cobra CX65 Parts – Forks & Triple Clamps

Ref #	Part #	Product	Price
1	KAC62013	FORK SET COMPLETE CX65 37MM	$804.42
2	FCC60062	TRIPLE CLAMP TOP	$154.54
3	FAC60022	TRIPLE CLAMP BOTTOM ASSY CX65 37MM	$211.30
4	HCBC0603	M6 X 30 SHCS ZINC	$1.09
5	HCBC0625	M6 X 25 SHCS ZINC	$1.09
6	FCMU1103	R/B FCMU0079 - DUST COVER STEER STEM, RUBBER	$9.43
7	SCMU0036	R/B ZCMUOR35 - O-RING - 25.1X1.6BUNA-N	$2.20
8	FCMU0023	SPACER STEERING STEM SD	$8.77
9	FCMU0004	BEARING - STEERING TAPERED	$16.56
10	FCMU0024	SEAL - STEERING STEM - 6MM THK	$18.78
11	FCMU0151	STEERING STEM CAP	$5.54
12	TKMU0404	HANDLE BAR RISER KIT - SHORT (STOCK)	$48.83
12	TKMU0403	HANDLE BAR RISER KIT - TALL	$54.39
13	HCBC0806	M8 X 30 SHCS ZINC	$1.09
14	HCBC1001	10 X 45 SHCS ZINC WHEN OUT, USE HCBC1040	$2.98
15	HCNL1001	M10 LOCKNUT-1.5 THREAD PITCH	$1.64
16	HCNJ0102	JAM NUT STEERING STEM	$14.33
17	KCC60014	GUARD - FORK - SET CX65 - 2009 - 2021	$29.91
18	HCBC0612	M6 X 12 SHCS ZINC	$1.09
19	BCC60015	BRAKELINE CLAMP	$5.54
20	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR	$0.53
21	HCBC0601	M6 X 16 SHCS ZINC	$1.09
22	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
23	HCBC0601	M6 X 16 SHCS ZINC'	$1.09
24	FCMU0011	RACE FOR STEERING HEAD	$8.77
ACCESSORY	FKMU0003	KIT - STEERING STEM SEALS AND SPACERS 2012-2015	$99.02
