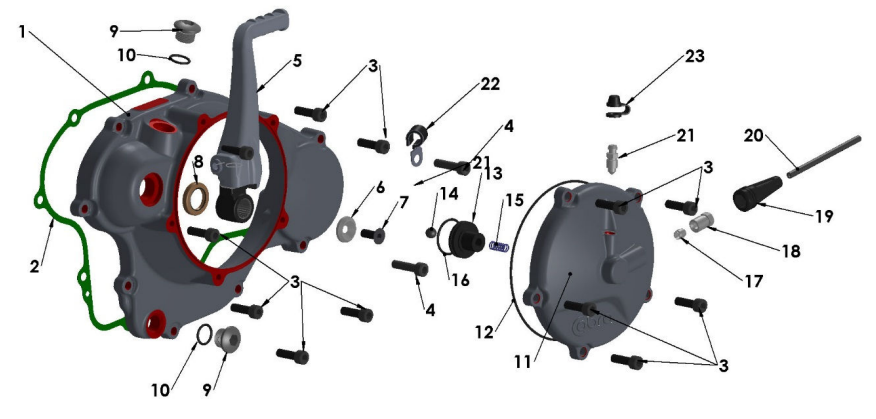

1
|
ECC60178 |
 |
R/B ECC60239 -CLUTCH COVER - CX65 2015 - W/O BEARING OR SEAL* |
$199.06 |
|
|
2
|
ZCC60016 |
|
GASKET - CLUTCH COVER PV 2015 CX65* |
$13.22 |
|
|
3
|
HCBC0602 |
 |
M6 X 20 SHCS ZINC |
$1.09 |
|
|
4
|
HCBC0625 |
 |
M6 X 25 SHCS ZINC |
$1.09 |
|
|
5
|
EAMU0011 |
 |
LEVER KICK START ASSEMBLY* |
$83.32 |
|
|
6
|
ECMU0250 |
 |
WASHER - KICK ARM |
$9.88 |
|
|
7
|
HCFH0616 |
|
M6 X 16 FLAT HEAD W ZINC |
$1.09 |
|
|
8
|
ECDC0078 |
 |
SEAL - KICKSTARTER |
$4.32 |
|
|
9
|
ECMU0168 |
 |
R/B ECMU0272 - OIL FILL PLUG, ALUMINUM, O-RING STYLE |
$10.99 |
|
|
10
|
ZCMUB014 |
 |
O-RING - KICK SHAFT & OIL FILL PLUG |
$1.42 |
|
|
11
|
ECC60179 |
|
CLUTCH COVER CAP - CX65 2015* |
$87.88 |
|
|
12
|
ZCC60013 |
|
ORING - CLUTCH COVER CAP - 2015 CX65* |
$2.76 |
|
|
13
|
CCC60005 |
|
PISTON - CLUTCH SLAVE - CX65 |
$22.12 |
|
|
14
|
CCEX0009 |
 |
BALL 5/16`` CLUTCH PUSH |
$2.20 |
|
|
15
|
CCC60006 |
|
CLUTCH SLAVE PRELOAD SPRING* |
$6.54 |
|
|
16
|
ZCMUOR25 |
 |
ORING - CLUTCH SLAVE - DOT 4 SYSTEM CARD - EPDM |
$2.48 |
|
|
17
|
BCMU0017 |
 |
FERRULE- COMPRESSION - MAGURA |
$1.09 |
|
|
18
|
BCMU0020 |
 |
CLUTCH - SLEEVE NUT M10-1 - MAGURA |
$4.43 |
|
|
19
|
BCMU0021 |
|
COVER - FOR SLEEVE NUT* |
$6.54 |
|
|
20
|
CCC60010 |
|
R/B CCC60041 - CLUTCH LINE REPLACEMENT KIT 2010 - 2016* |
$25.46 |
|
|
21
|
BCMU0018 |
 |
BLEED SCREW 8MM x 1.00 |
$5.43 |
|
|
22
|
CCC60030 |
|
BRACKET - CLUTCH LINE HOLDER* |
$6.66 |
|
|
23
|
BCC60034 |
 |
CAP - BRAKE/CLUTCH BLEED SCREW |
$5.08 |
|
|
ACCESSORY
|
EKMU0002 |
 |
KICKSTART PIVOT KIT SPRING-BALL-SCREW* |
$7.65 |
|
