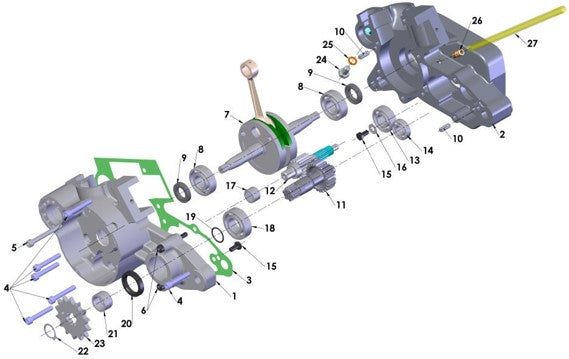

2015 Cobra 50JR Parts – Engine – Bottom End and Transmission

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1 & 2	EKCS0003	ENGINE CASE SET W/B&S 50 2012*	$0.00	Back Order
3	ZCCS0005	GASKET - CENTERCASE 2010 50*	$14.33
4	HCBC0605	R/B HCBC0640 - M6 X 40 SHCS ZINC*	$1.09
5	HCBC0608	R/B HCBC0655 - M6 X 55 SHCS ZINC*	$1.09
6	HCBC0606	R/B HCBC0645 - M6 X 45 SHCS ZINC*	$1.09
7	ECMU0057	R/B ECMU0258 - CRANKSHAFT - 41.7MM STROKE - 3 SIDE SPLINE*	$250.24
8	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS	$22.12
9	ECMU0118	SEAL - CRANKSHAFT - 50CC STD	$11.44
10	HCDP1401	DOWELPIN 1/4 X 5/8 HARDENED*	$1.09
11	DECMU0999	OUTPUT SHAFT, TRANSMISSION WITH GEAR*	$0.00	Back Order
12	ECMU0100	GEAR - INPUT - 50CC FOR CFD*	$130.06
13	ECMU0001	BEARING - TRANS. SEC. GEAR*	$22.12
14	ECKG0031	BEARING 6001 NO SEALS*	$9.88
15	HCBH0612	M6 X 12 HH BLACK OXIDE*	$1.09
16	HCWF0316	WASHER - FLAT - ID .25 X OD .56 X .051 THK - BRNG RETAINER*	$0.53
17	ECMU0020L	BEARING - PRECISION - LEFT SIDE	$23.23
18	ECKGBR01	BEARING OUTPUT- 50 & 65	$29.91
19	ZCDCOR01	ORING SPROCKET SPACER	$2.54
20	ECMU0072	SEAL - OUTPUT SHAFT - 04 & NEWER 50CC	$8.77
21	ECMU0073	SPROCKET SPACER-04 KING CM	$10.99
22	ECKGSR03	SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT	$2.54
23	PCKG0013	SPROCKET 13T*	$18.78
23	PCKG0012	SPROCKET 12T*	$18.78
23	PCKG0014	SPROCKET 14T*	$18.78
23	PCKG0015	SPROCKET 15T*	$18.78
24	HCBH0805	M8 X 12 HH ZINC	$1.09
25	HCWC0000	CRUSH WASHER - 8MM COPPER 0.8 THICK	$1.09
26	ECMU0233	R/B ECMU0233P - VENT HOSE NIPPLE (LARGE)*	$9.88
27	ECMU0577	VENT HOSE, CRANKCASE*	$0.00	Back Order
