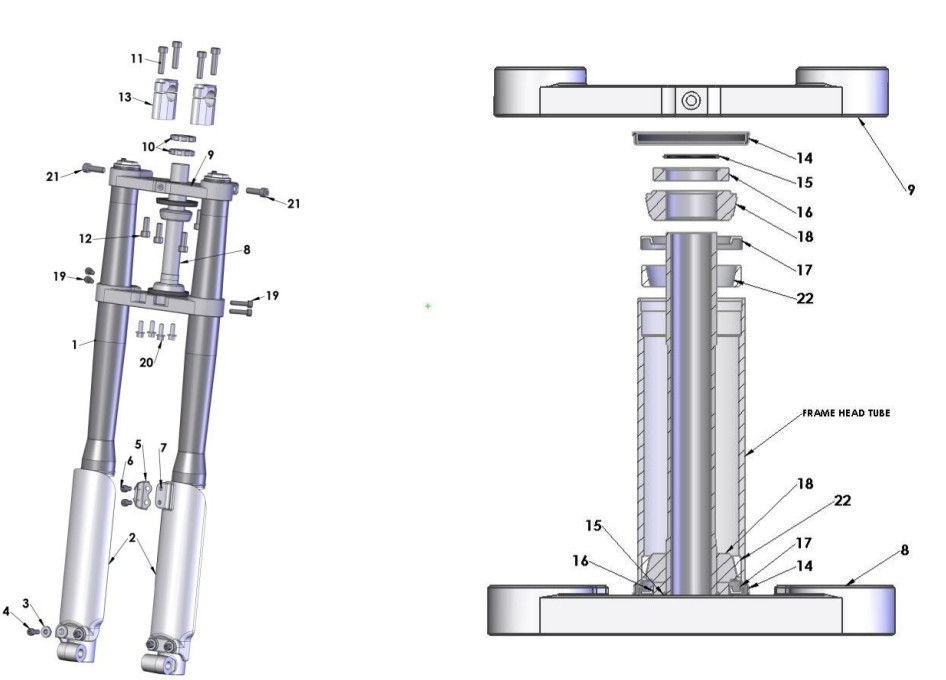

2014 Cobra 50JR Parts – Forks & Triple Clamps

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	KACJ0001	FORK SET COMPLETE JR*	$804.42
2	KCMU0011	GUARD - FORK - SET 50CC (NO HARDWARE)*	$29.91
3	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
4	HCBC0601	R/B HCBC0616 - M6 X 16 SHCS ZINC*	$1.09
5	BCC60015	BRAKELINE CLAMP	$5.54
6	HCBC0612	M6 X 12 SHCS ZINC	$1.09
7	HCNL0601	M6 LOCKNUT	$1.09
8	FACJ0004	TRIPLE CLAMP BOTTOM ASSY JR/P3 - 32MM*	$205.73
9	FCCJ2005	TRIPLE CLAMP TOP JR*	$0.00	Back Order
10	HCNJ0102	JAM NUT STEERING STEM	$14.33
11	HCBC0806	R/B HCBC0830 - M8 X 30 SHCS ZINC*	$1.09
12	HCBC0820	M8 X 20 SHCS ZINC*	$1.09
13	TKMU0404	HANDLE BAR RISER KIT - SHORT (STOCK)	$48.83
13A	TKMU0403	HANDLE BAR RISER KIT - TALL*	$54.39
14	FCMU1103	R/B FCMU0079 - DUST COVER STEER STEM, RUBBER*	$9.43
15	SCMU0036	R/B ZCMUOR35 - O-RING - 25.1X1.6BUNA-N*	$2.20
16	FCMU0023	SPACER STEERING STEM SD	$8.77
17	FCMU0024	SEAL - STEERING STEM - 6MM THK	$18.78
18	FCMU0004	BEARING - STEERING TAPERED	$16.56
19	HCBC0625	M6 X 25 SHCS ZINC	$1.09
20	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC'*	$1.09	Back Order
21	HCBC0825	M8 X 25 SHCS ZINC*	$1.09
22	FCMU0011	RACE FOR STEERING HEAD	$8.77
ACCESSORY	FKMU0003	KIT - STEERING STEM SEALS AND SPACERS 2012-2015	$99.02
