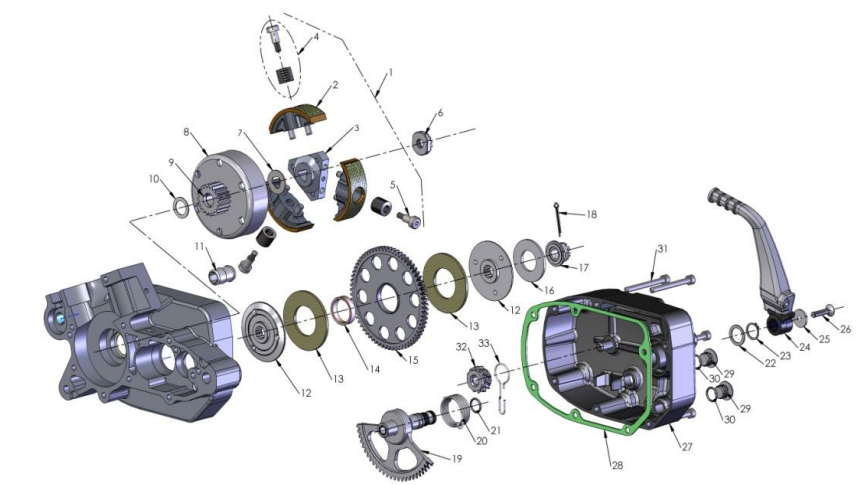

2014 Cobra 50JR Engine – Clutch and Kick Starter

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	CAMU0006	R/B CAMU0002 - CLUTCH - COMPLETE ASSY - TRISIDE -OLD WASHERS*	$305.88
2	CAMU0013	CLUTCH SHOES SET OF 3 W/ WASHER STACKS 2006-14 50CC*	$187.93
3	CCMU0005	CLUTCH ARBOR - TRI-SIDE*	$127.84
4	CAMU0010	CLUTCH WASHER STACKS FOR TAPER ARBOR 06 AND LATER*	$32.14
5	HCBS0004	8 X 16 SHOULDER BOLT SEE SPEC SHEET*	$7.65
6	ECMU0018	CRANKSHAFT START NUT - CLUTCH NUT	$31.02
7	CCMU0007	SHIM - CLUTCH BACKING SPACER - 3 SPLINE	$14.33
8	ECMU0120	CLUTCH BASKET NEDL BRNG - V4*	$99.57
9	ECMU0119	BEARING - NEEDLE - CLUTCH 3 SHOE	$14.33
10	ECMU0040	SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15*	$2.76
11	ECMU0132	FITTING-COOLANT*	$27.68
12	ECMU0306	SLIP HUB V3 CFD*	$42.82
13	ECMU0249	FRICTION MATERIAL V3 CFD THICK*	$18.78
14	ECMU0305	BUSHING V3 CFD 7MM*	$16.22
15	ECMU0301	GEAR V3 CFD*	$176.80
16	ECMU0308	BELLEVILLE SPRING V3 CFD	$10.99
17	ECMU0307	NUT V3 CFD	$20.56
18	HCCP0002	R/B HCCP0010 COTTERPIN 3/32 X 1 1/2\"*	$0.53
19	EAMU0001	OBSOLETE - GEAR AND SHAFT - KICKSTART - 50CC*	$98.90
20	ECMU0116	SPRING - KICKSTART RETURN - 50CC*	$15.56
21	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG*	$1.42
22	HCWS1622	WASHER - KICK START BACKUP*	$2.09
23	ECDC0036	SNAP RING EXT.16MM-SPRING RET.*	$2.20
24	EAMU0011	LEVER KICK START ASSEMBLY*	$83.32
25	ECMU0250	WASHER - KICK ARM*	$9.88
26	HCFH0625	M6 X 25 FLAT HEAD W ZINC*	$1.09
27	ECMU0115	R/B ECMU0175 - COVER CLUTCH/KICKER MACH 06 50*	$143.42
28	ZCMU0030	GASKET - CLUTCH COVER - PRE-VENOM*	$13.22
29	ECMU0168	R/B ECMU0272 - OIL FILL PLUG, ALUMINUM, O-RING STYLE	$10.99
30	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG.*	$1.42	Back Order
31	HCBC0608	M6 X 55 SHCS ZINC*	$1.09
32	ECMU0207	KICKSTARTER SMALL GEAR	$37.70
33	ECMUSP01	SPRING - KICK START DOG-SM.SPRING*	$8.88
ACCESSORY	HKCP0001	COTTERPIN PACK OF 10 1/8\" X 1 1/4\"	$4.43
ACCESSORY	EKMU0002	KICKSTART PIVOT KIT SPRING-BALL-SCREW*	$7.65
KIT	HKAM0022	HARDWARE KIT - CLUTCH SHIM*	$29.50
KIT	EKMU0033	V3 CFD REFRESH KIT FOR 2011 & LATER*	$50.61
