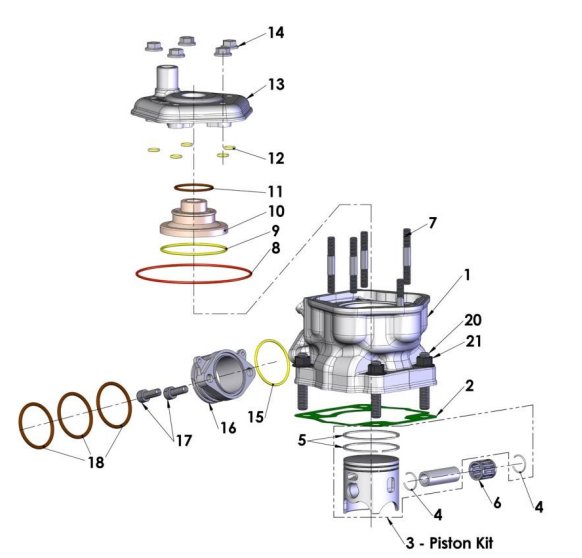

2013 Cobra CX65 Parts – Engine – Top End

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	ECC60157	R/B ECC60257 CYLINDER KIT - CX65 PV - 2013*	$644.18
2	ZCC60302	GASKET - 0.2MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60303	GASKET - 0.3MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60304	GASKET - 0.4MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60305	GASKET - 0.5MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60306	GASKET - 0.6MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60308	GASKET - 0.8MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
3	ECMU0184AB	PISTON KIT 65 44.5MM BORE SIZE AB*	$110.03
3	ECMU0184CD	R/B ECMU0184C - PISTON KIT 65 44.5MM BORE SIZE CD*	$110.03
4	ECMUSR00	CIRCLIP - PAIR - 39MM PISTON	$4.43
5	ECEX0005	R/B ECC60221 - RING SET - 44.5MM PISTON*	$32.14
6	ECDC0061	BEARING - WRISTPIN 65CC*	$14.11
7	ECC60107	STUD - CYLINDER HEAD 6MM X 41MM	$5.43
8	ZCC60009	O-RING - CYL HEAD LARGE - 65CC & VENOM	$7.65
9	ZCMUOR05	O-RING - HEAD - MEDIUM 50CC	$8.88
10	ECC60154	CYLINDER HEAD INSERT - 2013 - 2015*	$105.58
11	ZCMUOR23	ORING - HEAD INSERT - VITON	$4.98
12	ZCMUOR03	O-RING 6.07X1.78 SILICONE*	$1.09
13	ECC60149	CYLINDER HEAD OUTER - 65CC & VENOM*	$98.90
14	HCNF0601	6MM FLANGE NUT-ZINC - CLASS 10	$0.64
15	ZCMUOR07	O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP	$4.43
16	ECC60064	FLANGE - EXHAUST CX65 2013*	$42.82
17	HCBC0601	M6 X 16 SHCS ZINC	$1.09
18	ZCMOTE11	O-RING - EXHAUST FLANGE	$3.20
20	ECC60109	STUD - CYLINDER 8MM X 44.5MM*	$7.21
21	HCNF0801	8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS	$1.09
NOT SHOWN	ZKMUOR13	ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM*	$16.11
