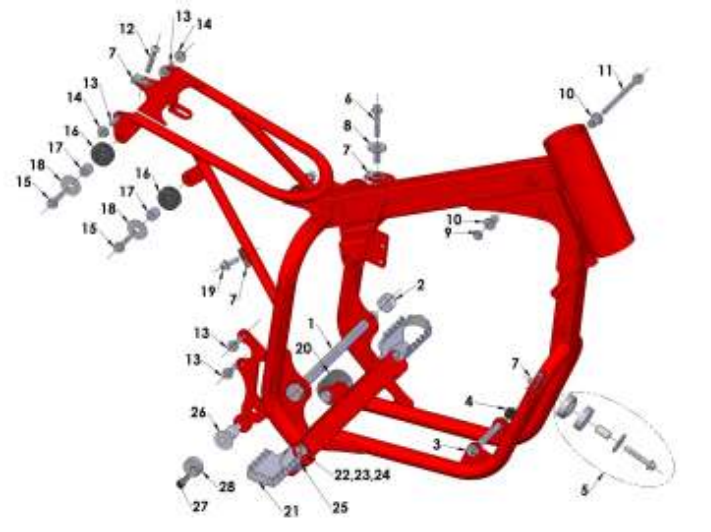

2013 Cobra 50JR Frame – Engine, Swingarm, Tank, and Pipe Mounts

Ref #	Part #	Product	Price
1	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT	$32.14
2	HCNL1201	M12-1.25 LOCKNUT FINE THREAD	$3.20
3	HCBH0880	M8 X 80 HH ZINC	$6.66
4	HCNL0801	R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL	$1.09
5	MCMUGR02	GROMMET KIT PIPE & SPACER	$9.88
6	HCBF0635	M6 X 35 FLANGE HD HEX 8MM ZINC 8.8	$1.09
7	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT	$2.20
8	TCHA0004	BUSHING-REAR TANK MOUNTING	$9.88
9	HCNL0601	M6 LOCKNUT	$1.09
10	TCHA0006	BUSHING-MOUNTING	$7.65
11	HCBB0635	M6 X 35 BUTTON HEAD ZINC	$1.09
12	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8	$1.09
13	HCNF0602	6MM NYLOC FLANGE NUT CLASS 10	$1.09
14	HCBF0625	M6 X 25 FLANGED HD HEX 8MM ZINC	$1.09
15	MCMUGR03	GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT	$4.98
16	TCKG0001	SPACER GENERAL 1/2DIA 13.2 LG	$2.76
17	HCWF1478	1/4`` FLAT WASHER 7/8`` OD	$0.53
18	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC	$1.09
19	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS	$18.34
20	TCMU0010	FOOTPEGS - PAIR KING	$44.38
21	HCBH0840	M8 X 40 HH 30MM NO THRD ZINC FOOTPEG BOLT	$2.09
22	HCNL0802	R/B HCNL0802 - M8 LOCKNUT CLEAR ZINC 10MM TALL	$1.09
23	HCWF0803	R/B HCWF0801 - 8MM FLAT WASHER CLEAR ZINC	$0.53
24	BCDC0009	BRAKE PEDAL PIVOT BOLT	$17.67
25	HCBC0601	M6 X 16 SHCS ZINC	$1.09
26	FCEX0018	BRAKE ADJUST ECCENTRIC	$13.22
