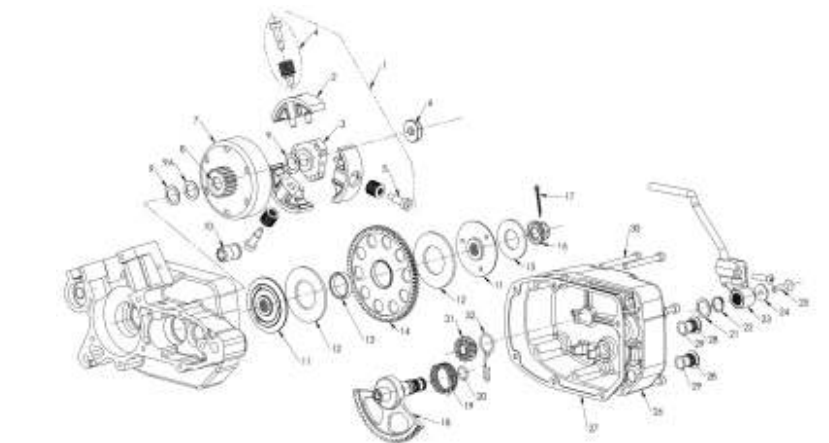

2013 Cobra 50JR Parts – Engine Clutch and Kicker

Ref #	Part #	Product	Price	Quantity
1	CAMU0005	CLUTCH COMPLETE 50 TAPER FIT	$305.88
2	CAMU0013	CLUTCH SHOES SET OF 3 W/ WASHER STACKS 2006-14 50CC	$187.93
3	CCMU0029	CLUTCH ARBOR -M6 06 50	$121.16
4	CAMU0010	CLUTCH WASHER STACKS FOR TAPER ARBOR 06 AND LATER	$32.14
5	HCBS0004	8 X 16 SHOULDER BOLT SEE SPEC SHEET	$7.65
6	ECMU0018	CRANKSHAFT START NUT - CLUTCH NUT	$31.02
7	ECMU0120	CLUTCH BASKET NEDL BRNG - V4	$99.57
8	ECMU0119	BEARING - NEEDLE - CLUTCH 3 SHOE	$14.33
9	ECMU0040	SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15	$2.76
9A	ECMU0040T	SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15	$2.76
10	ECMU0132	FITTING-COOLANT	$27.68
KIT	EKMU0013	TOP END KIT ECMU0129 REPLACEMENT WITH HEAD AND STUDS	$510.64
KIT	EKMU0033	V3 CFD REFRESH KIT FOR 2011 & LATER	$50.61
11	ECMU0306	SLIP HUB V3 CFD	$42.82
12	ECMU0249	FRICTION MATERIAL V3 CFD THICK	$18.78
13	ECMU0305	BUSHING V3 CFD 7MM	$16.22
14	ECMU0301	GEAR V3 CFD	$176.80
15	ECMU0308	BELLEVILLE SPRING V3 CFD	$10.99
16	ECMU0307	NUT V3 CFD	$20.56
17	HCCP0002	R/B HCCP0010 COTTERPIN 3/32 X 1 1/2\"	$0.53
18	EAMU0001	OBSOLETE - GEAR AND SHAFT - KICKSTART - 50CC	$98.90
19	ECMU0116	SPRING - KICKSTART RETURN - 50CC	$15.56
20	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG	$1.42
21	HCWS1622	WASHER - KICK START BACKUP	$2.09
22	ECDC0036	SNAP RING EXT.16MM-SPRING RET.	$2.20
23	ECMU0130	OBSOLETE - KICK LEVER ASSEMBLY	$74.42
24	ECMU0250	WASHER - KICK ARM	$9.88
25	HCFH0625	M6 X 25 FLAT HEAD W ZINC	$1.09
26	ECMU0115	R/B ECMU0175 - COVER CLUTCH/KICKER MACH 06 50	$143.42
27	ZCMU0030	GASKET - CLUTCH COVER - PRE-VENOM	$13.22
28	ECMU0168	R/B ECMU0272 - OIL FILL PLUG, ALUMINUM, O-RING STYLE	$10.99
29	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG.	$1.42	Back Order
30	HCBC0608	M6 X 55 SHCS ZINC	$1.09
31	ECMU0207	KICKSTARTER SMALL GEAR	$37.70
32	ECMUSP01	SPRING - KICK START DOG-SM.SPRING	$8.88
ACCESSORY	HKCP0001	COTTERPIN PACK OF 10 1/8\" X 1 1/4\"	$4.43
ACCESSORY	EKMU0002	KICKSTART PIVOT KIT SPRING-BALL-SCREW	$7.65
