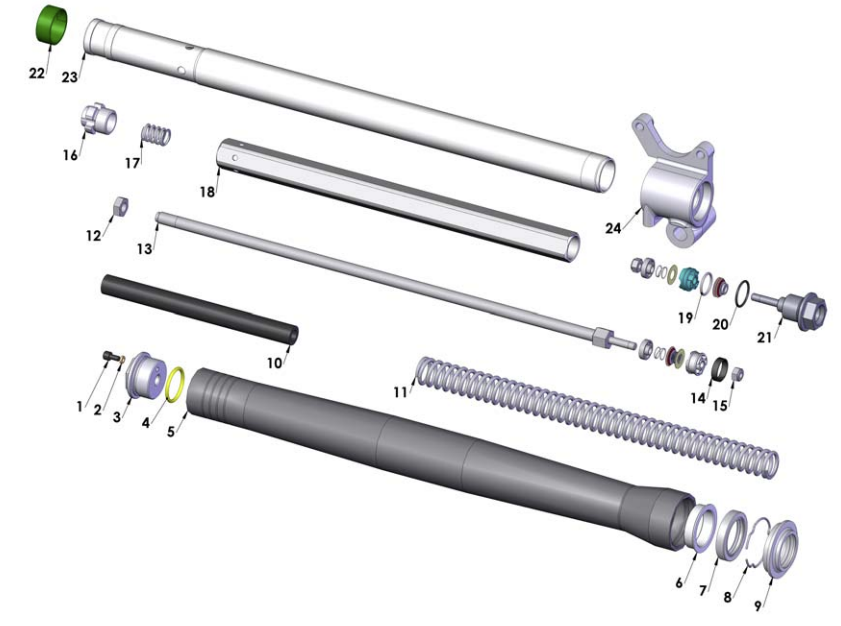

2012 CX50 BW Fork Leg Assembly Brake Side

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCKG0047	FORK CAP 06 KING	$38.81
4	ZCMUOR08	O-RING GASKET FORKCAP & CYL. HD	$2.20
5	KCKG0121	FORK - OUTER TUBE 30MM*	$210.18
6	KCKG0051	R/B KCKG0051L FORK - BUSHING 30MM	$16.56
7	KCMU0007	FORK - SEAL - 30MM	$13.88
8	KCKG0052	FORK - WIRE RETAINER 06	$5.43
9	KCKG0008	FORK - SWIPER 30MM	$16.56
10	KCKG0048	HOSE FORK BOTTOMING 06 KING*	$10.55
11	KCKG1206	OBSOLETE - FORK SPRING 06*	$36.59
12	KAKG0001	DAMPER ROD ASSY 06 KG*	$61.07
13	KCCS0018	FORK - MID VALVE GLIDE RING*	$9.88
14	HCNL0601	M6 LOCKNUT	$1.09
15	KCCS0001	R/B KCMU0013 - FORK - CARTRIDGE CAP*	$28.80
16	KCKG0050	FORK - TOP OUT SPRING	$8.77
17	KCKG0054	FORK - CARTRIDGE TUBE 5 STAR*	$61.07
18	KCMU0021	O-RING - FORK - BASE VALVE & COMP ADJ	$1.09
19	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
20	KCKG0018	BOTTOM PLUG BASE VALVE - FORK*	$44.38
21	KCKG0049L	R/B KCKG0049LM - FORK - GLIDE RING - 30MM LOOSE	$14.33
22	KAKG0144	FORK LOWER COMPLETE, BRAKE*	$105.58
