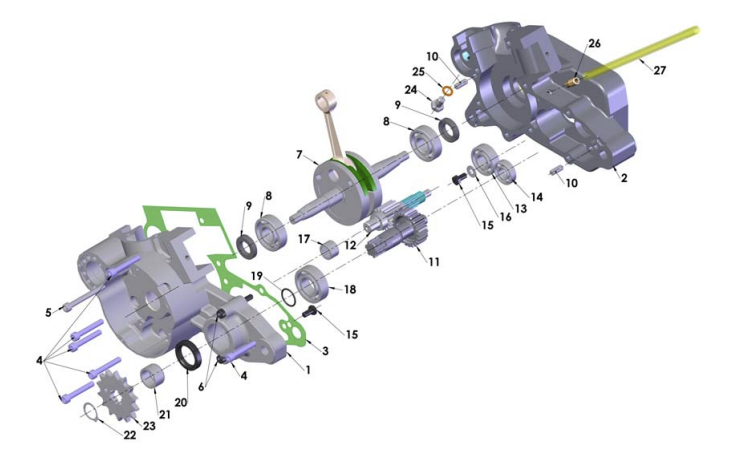

2012 CX50 BW Engine Bottom End and Transmission

Ref #	Part #	Product	Price
1	ZCCS0005	GASKET - CENTERCASE 2010 50	$14.33
2	HCBC0605	M6 X 40 SHCS ZINC	$1.09
3	HCBC0608	M6 X 55 SHCS ZINC	$1.09
4	HCBC0606	M6 X 45 SHCS ZINC	$1.09
5	ECMU0038	R/B EKMU0009 CRANKSHAFT -BALANCED - 50CC	$222.42
6	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS	$22.12
7	ECMU0118	SEAL - CRANKSHAFT - 50CC STD	$11.44
8	HCDP1401	DOWELPIN 1/4 X 5/8 HARDENED	$1.09
9	ECMU0100	GEAR - INPUT - 50CC FOR CFD	$130.06
10	ECMU0001	BEARING - TRANS. SEC. GEAR	$22.12
11	ECKG0031	BEARING 6001 NO SEALS	$9.88
12	HCBH0612	M6 X 12 HH BLACK OXIDE	$1.09
13	HCWF0316	WASHER - FLAT - ID .25 X OD .56 X .051 THK - BRNG RETAINER	$0.53
14	ECMU0020L	BEARING - PRECISION - LEFT SIDE	$23.23
15	ECKGBR01	BEARING OUTPUT- 50 & 65	$29.91
16	ZCDCOR01	ORING SPROCKET SPACER	$2.54
17	ECMU0072	SEAL - OUTPUT SHAFT - 04 & NEWER 50CC	$8.77
18	ECMU0073	SPROCKET SPACER-04 KING CM	$10.99
19	ECKGSR03	SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT	$2.54
20	PCKG0014	SPROCKET 14T	$18.78
21	HCBH0805	M8 X 12 HH ZINC	$1.09
22	HCWC0000	CRUSH WASHER - 8MM COPPER 0.8 THICK	$1.09
23	ECMU0233	R/B ECMU0233P - VENT HOSE NIPPLE (LARGE)	$9.88
24	ECMU0557	HOSE CRANKCASE VENT 2010 - CURRENT 50cc	$8.88
25	ECMU0156	OUTPUT SHAFT SHIM 50`s	$2.20
