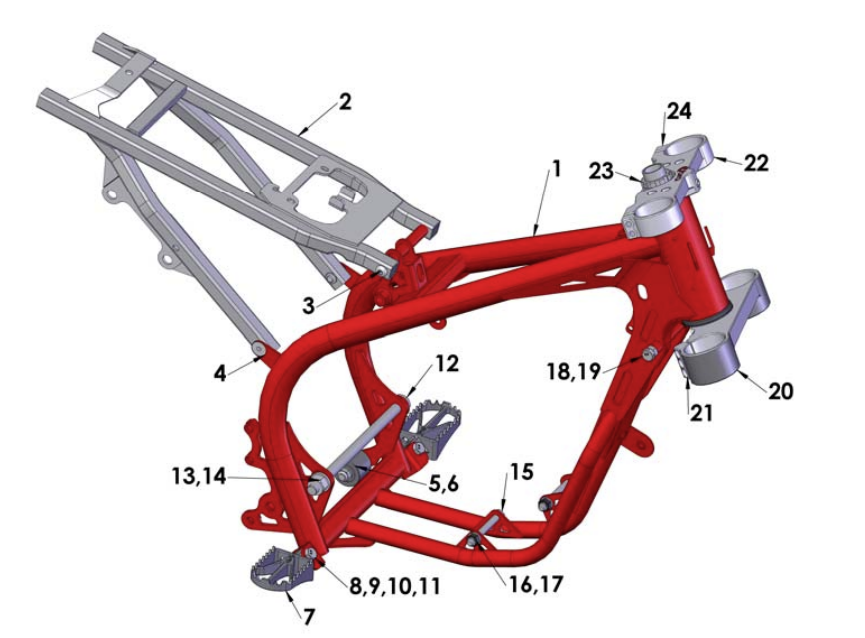

2012 Cobra CX65 Parts – Frame & Triple Clamps

Ref #	Part #	Product	Price	Quantity
1	FACX0020	FRAME WELDED ASSEMBLY	$0.00
2	FAC60016	SUBFRAME CX65 2010-2021	$165.67

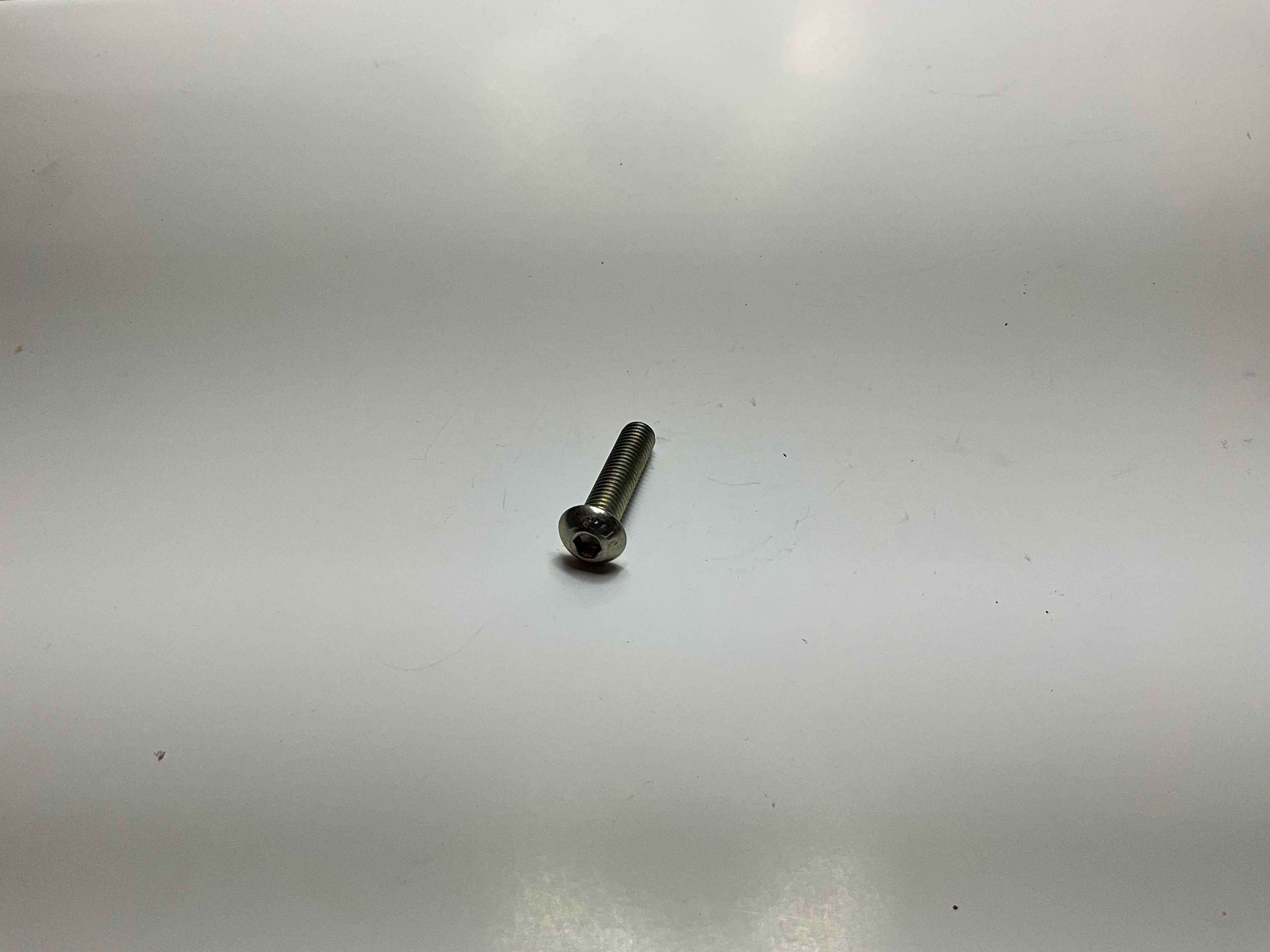

3	HCBB0835	M8 X 35 BUTTON HEAD ZINC	$1.09
4	HCFH0825	8 X 25 FLAT HEAD	$1.09
5	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS	$18.34
6	BCDC0153	BANJO WASHER 10MM ID	$1.09
7	TCMU0039	FOOTPEG SET ULTRA WIDE CX65	$0.00	Back Order
8	TCC60012	SPRING - FOOTPEG ULTRA WIDE	$5.43
9	HCBH0840	M8 X 40 HH 30MM NO THRD ZINC FOOTPEG BOLT	$2.09
10	HCWF0803	R/B HCWF0801 - 8MM FLAT WASHER CLEAR ZINC	$0.53
11	HCNL0802	R/B HCNL0802 - M8 LOCKNUT CLEAR ZINC 10MM TALL	$1.09
12	WCKG0011	AXLE-KING FRNT-SWNGARM PVT 65	$32.14
13	HCWF1202	12MM FLAT WASHER	$0.53
14	HCNL1201	M12-1.25 LOCKNUT FINE THREAD	$3.20
15	HCBH0865	M8 X 65 HH ZINC	$1.54
16	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'	$0.53	Back Order
17	HCNL0801	R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL'	$1.09	Back Order
18	HCBH0807	M8 X 20 HH ZINC	$1.09
19	HCNS0801	8MM NUT	$0.64
20	FAC60021	TRIPLE CLAMP BOTTOM ASSY CX65 2012	$211.30
21	HCBC0625	M6 X 25 SHCS ZINC	$1.09
22	HCNJ0102	JAM NUT STEERING STEM	$14.33
23	FCC60053	OBSOLETE - TRIPLE CLAMP TOP CX65 2010	$154.54
24	HCBC0603	R/B HCBC0630 - M6 X 30 SHCS ZINC	$1.09
