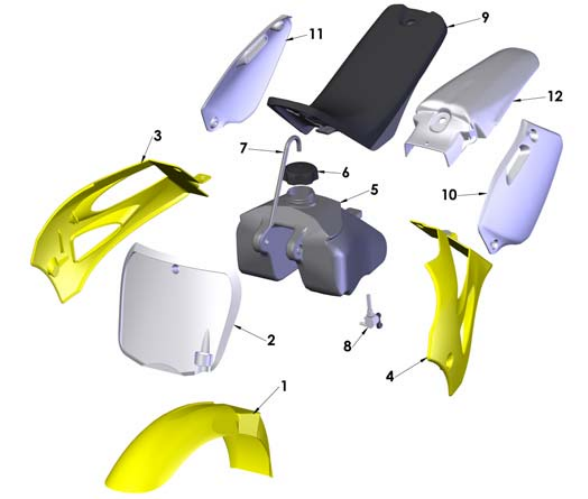

2012 Cobra 50JR Plastic and Seat

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	TCHA0107	FENDER - FRONT DRILLED - YELLOW JR/P3*	$31.16
1A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC	$1.09
2	TCC60002W	NUMBER PLATE FRONT- WHITE*	$19.45
2A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC.*	$1.09	Back Order
3&4	TCCJ0005Y	SHROUD SET - YELLOW JR/P3*	$43.26
3&4	TCCJ0005WHT	SHROUD SET - WHITE JR/P3*	$47.72
3&4	TCCJ0005BLK	SHROUD SET - BLACK JR/P3*	$47.72
3A	TCMU0032	OBSOLETE - RADIATOR PAD CM SHROUD*	$2.76
5	TCHA0001	R/B TCCJ0010C - FUEL TANK JR/P3 03 & LATER*	$149.12

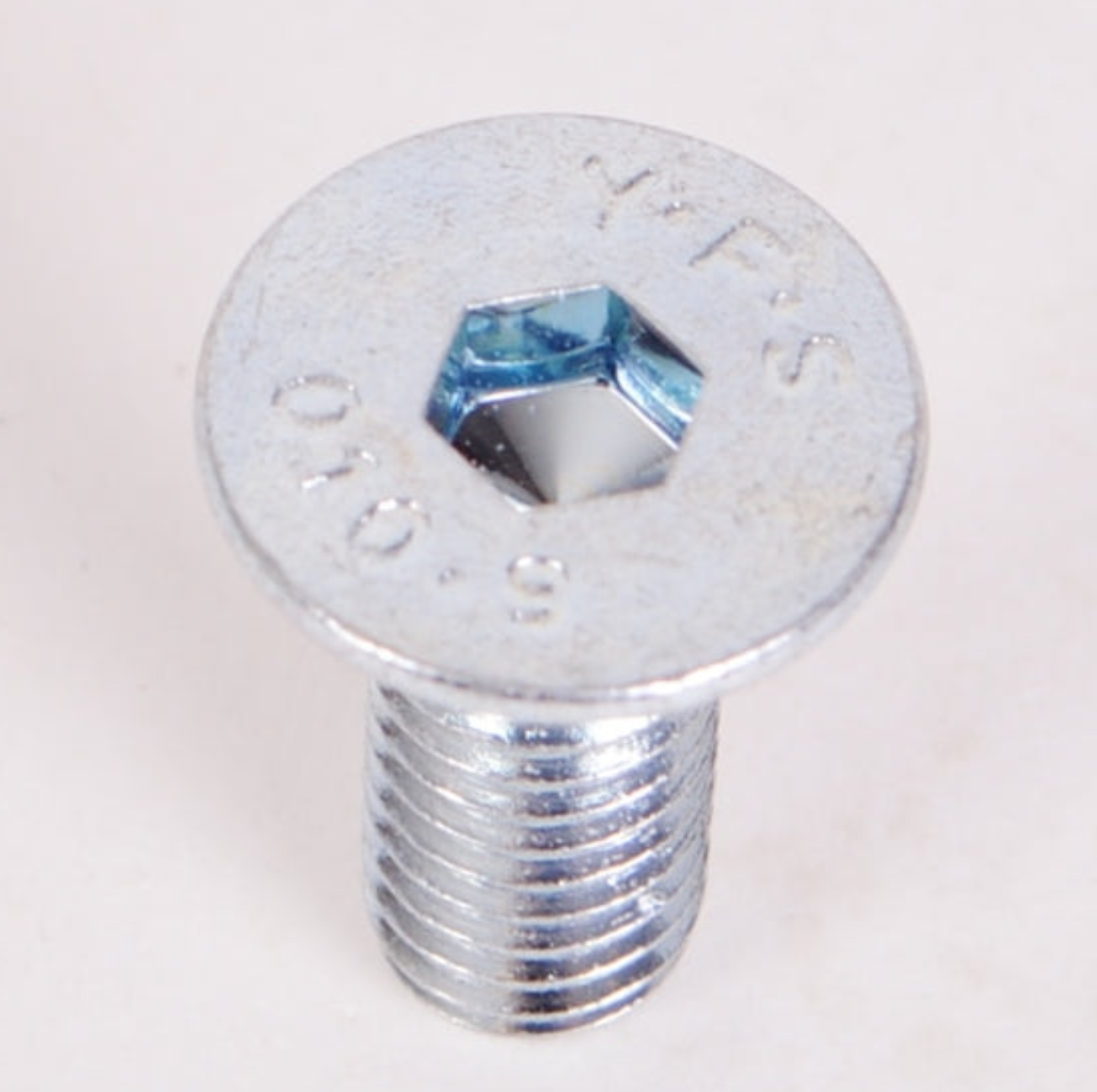

5A	HCFH0620	M6 X 20 FLAT HEAD W ZINC	$1.09
5B	TCHA0005	SPACER-SEAT MOUNT*	$7.65
5C	TCHA0006	BUSHING-MOUNTING*	$7.65
5D	HCBC0685	M6 X 85 SHCS ZINC	$1.54
5E	HCNL0601	M6 LOCKNUT	$1.09
5F	HCBC0645	M6 X 45 SHCS ZINC*	$1.09
5G	TCHA0004	BUSHING-REAR TANK MOUNTING	$9.88
6	TCHA0002	CAP - FUEL TANK- 65/KING/JR/P3*	$22.12
7	TCHA0003	HOSE FUEL TANK CAP - 65/KING/JR/P3	$2.76
8	TCMU0151	PETCOCK - FUEL - NO RESERVE	$20.01
9	TCCM0007	SEAT - 50CC JR/P3 GRIPPER*	$98.90
9A	HCBB0640	M6 X 40 BUTTON HEAD CS SS316*	$2.88
9B	MCMU0013	STRAP HANDLE JR/P3*	$12.11
10&11	TCCJ0003W	NUMBER PLATES SIDE (SET) WHITE - JR/P3*	$41.15
10&11	TCCJ0003Y	NUMBER PLATES SIDE (SET)YELLOW - JR/P3*	$41.15
10&11	TCCJ0003B	NUMBER PLATES SIDE (SET) BLACK - JR/P3*	$41.15
10A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC'*	$1.09	Back Order
10B	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8	$1.09

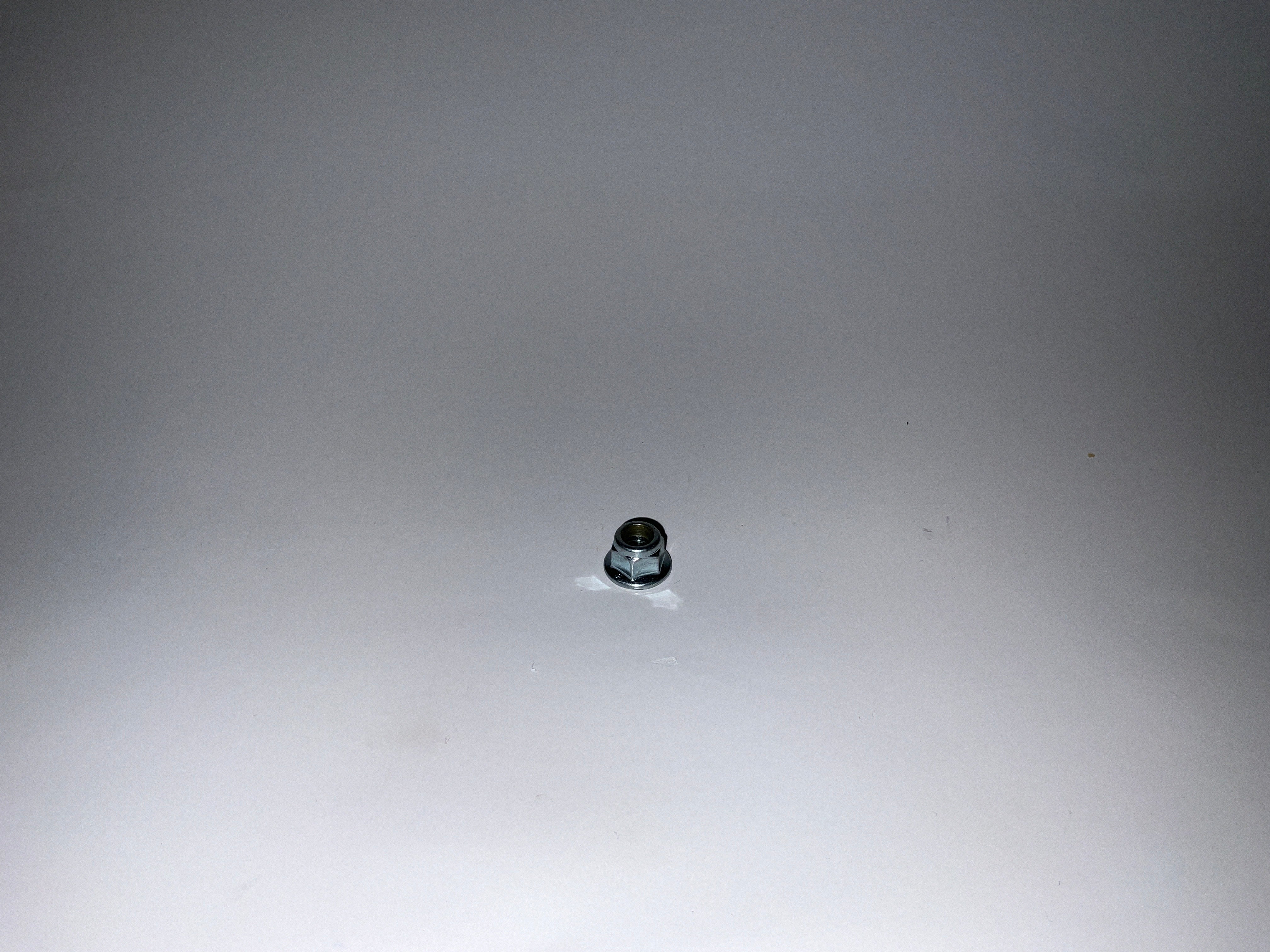

10C	HCNF0602	6MM NYLOC FLANGE NUT CLASS 10	$1.09
10D	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8´*	$1.09	Back Order
10E	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC-*	$1.09	Back Order
10F	HCNF0602	6MM NYLOC FLANGE NUT CLASS 10´	$1.09
12	TCHA0112WHT	FENDER - REAR - JR/P3 - WHITE*	$27.82
12A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC´*	$1.09	Back Order
ACCESSORY	TCMU2012	GRAPHIC KIT 2012 ALL BIKES*	$15.44
