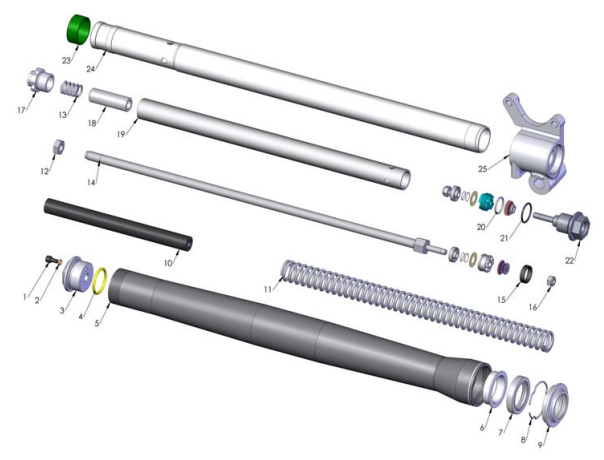

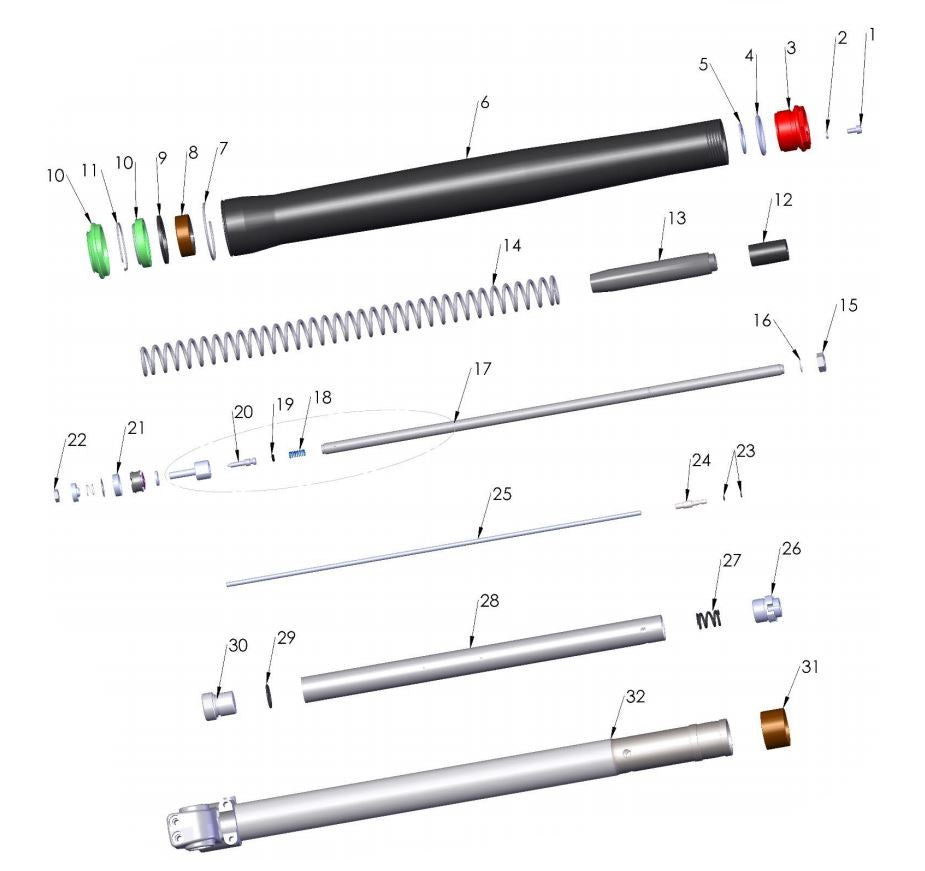

2012 Cobra 50JR Parts – Forks – Leg Assembly – Brake Side

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCKG0047	FORK CAP 06 KING	$38.81
4	ZCMUOR08	O-RING GASKET FORKCAP & CYL. HD	$2.20
5	KCKG0121	FORK - OUTER TUBE 30MM*	$210.18
6	KCKG0051	R/B KCKG0051L FORK - BUSHING 30MM	$16.56
7	KCMU0007	FORK - SEAL - 30MM	$13.88

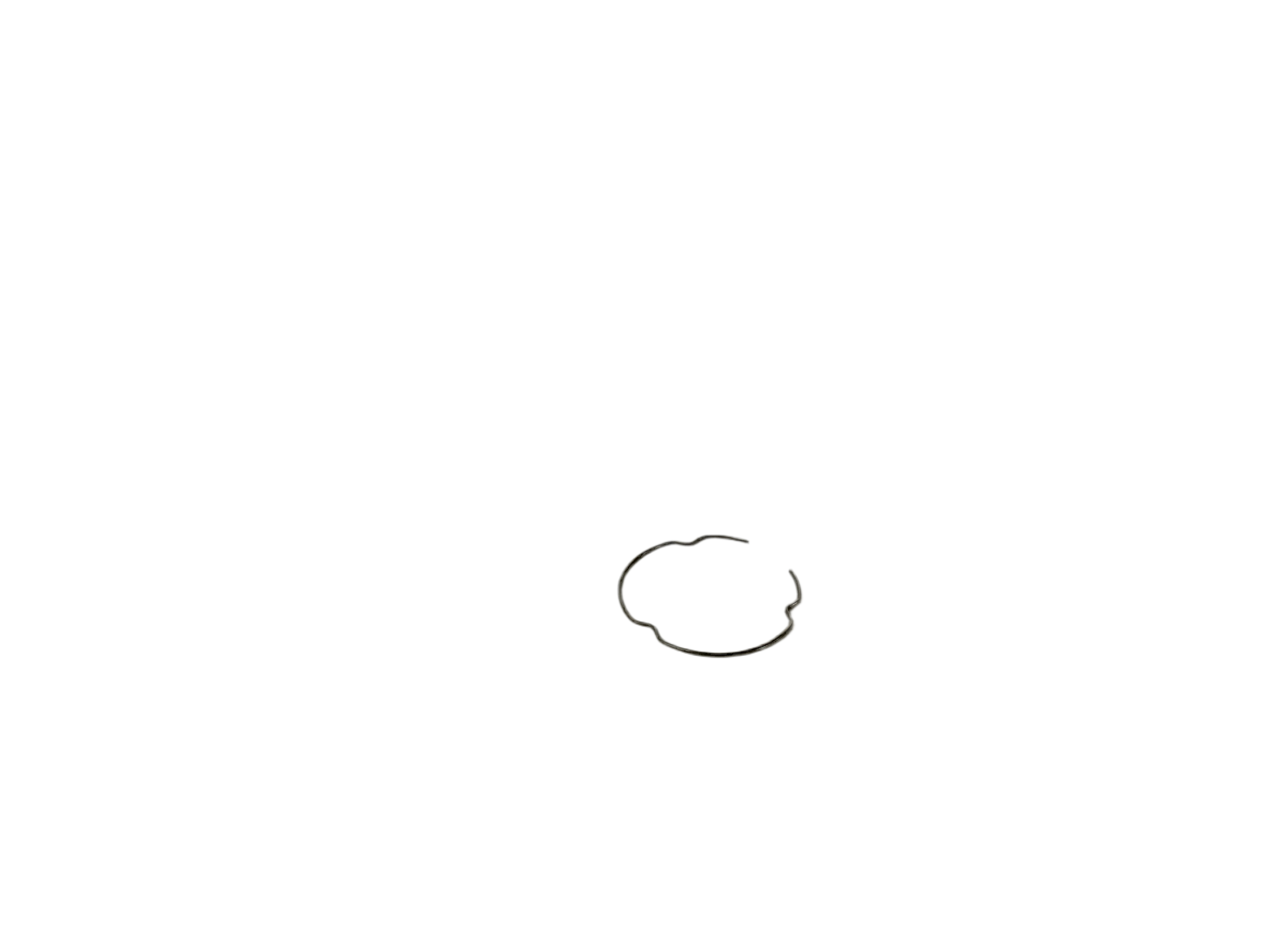

8	KCKG0052	FORK - WIRE RETAINER 06	$5.43
9	KCKG0008	FORK - SWIPER 30MM	$16.56
10	KCKG0048	HOSE FORK BOTTOMING 06 KING*	$10.55
11	KCCJ0021	FORK SPRING 2011 JR .21 KG/MM*	$36.59
11	KCCJ0018	FORK SPRING 2011 JR .18 KG/MM*	$36.59
11	KCCJ0025	FORK SPRING 2011 JR .25 KG/MM*	$36.59
12	HCNJ3824	NUT JAM 3/8-24 CLASS 8*	$3.32
13	KCKG0050	FORK - TOP OUT SPRING	$8.77
14	KAKG0001	DAMPER ROD ASSY 06 KG*	$61.07

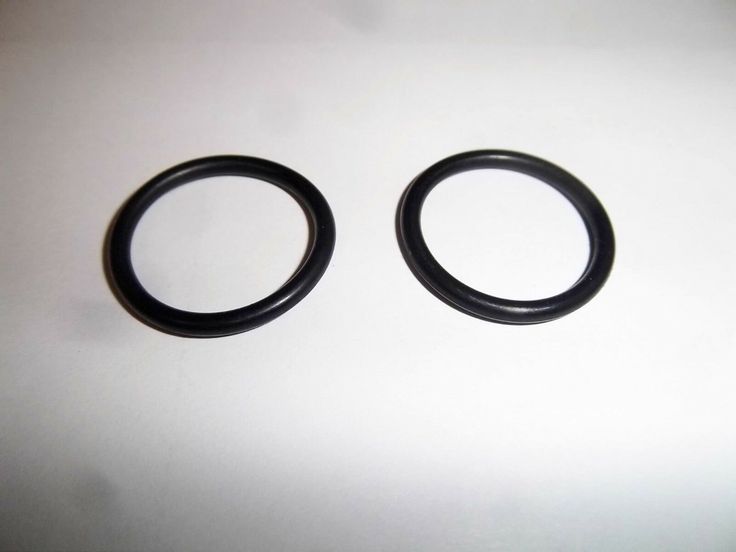

15	KCCS0018	FORK - MID VALVE GLIDE RING*	$9.88

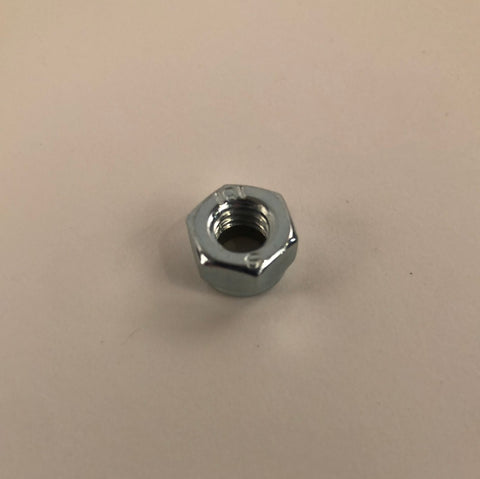

16	HCNL0601	M6 LOCKNUT	$1.09
17	KCCS0001	R/B KCMU0013 - FORK - CARTRIDGE CAP*	$28.80
18	KCCJ0002	FORK - TRAVEL LIMITER SPACER*	$15.44
19	KCKG0019	CARTRIDGE TUBE - JR KG 65 FORKS - ALUM*	$49.94
20	KCMU0021	O-RING - FORK - BASE VALVE & COMP ADJ	$1.09

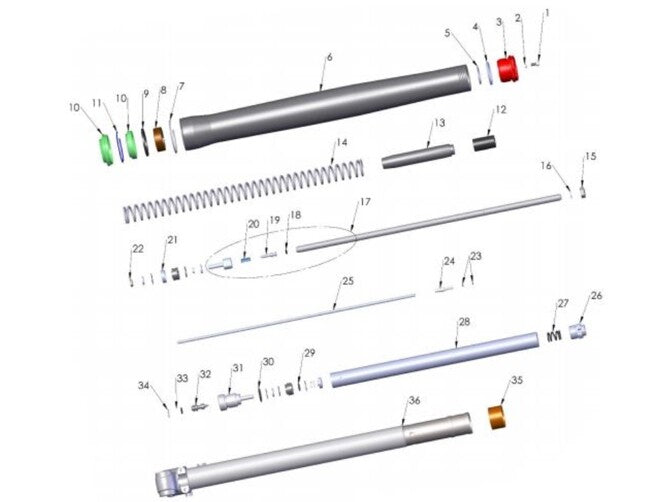

21	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
22	KCKG0018	BOTTOM PLUG BASE VALVE - FORK*	$44.38
23	KCKG0049L	R/B KCKG0049LM - FORK - GLIDE RING - 30MM LOOSE	$14.33
24/25	KAKG0144	FORK LOWER COMPLETE, BRAKE*	$105.58
