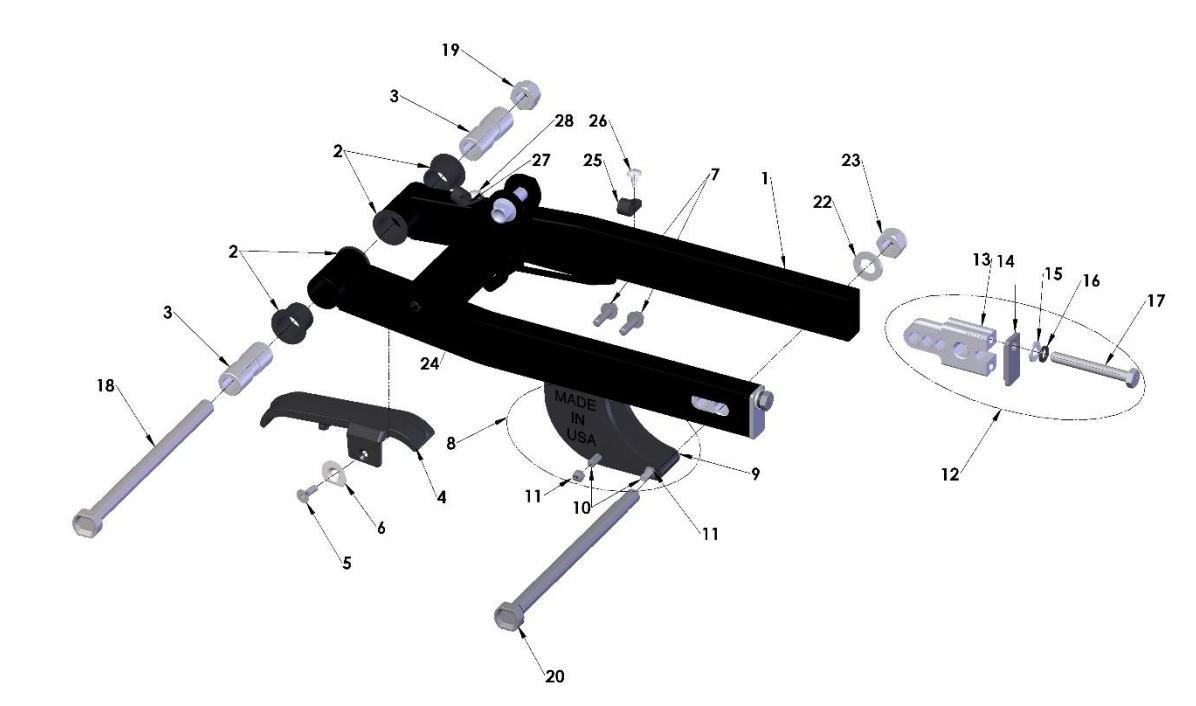

2022 CX50JR Parts – Swingarm Assembly

Item	Refrence #	Title	price	Quantity
1	GAMU2017B	Swingarm - Black	$194.58	Out of stock
2	GCMU0001	Swingarm Bushing (4 Req’d)	$10.58	Out of stock
3	GCCS0001	Spacer - Pivot Tube (2req’d)	$13.68	Out of stock
4	GCMU0041	Swingarm Chain Guard - Cx50 - With Mohawk And Foot	$16.58	Out of stock
5	HCFH0512	M5x12mm Flat Head Screw	$1.08	Out of stock
6	HCWF0501	5mm flat washer (2 req’d	$0.58	Out of stock
7	HCBF0620	M6x20mm Flange Head Bolt	$1.08	Out of stock
8	PAKG0001	Chain Guide – Assembly Complete	$30.08	Out of stock
9	PCKG0004	Chain Guide - Bottom Slider	$10.98	Out of stock
10	HCBFT640	M6x40mm Flat Head Bolt (2 Req’d)	$1.08	Out of stock
11	HCNL0601	M6 Locknut (2 Req’d)	$1.08	Out of stock
12	FAMU0005	Wheel Pull Assembly (Block, Cap, Bolt And Washer)	$32.28	Out of stock
13	FCMU0203	Wheel Pull	$24.38	Out of stock
14	FCMU0202	Wheel Pull Endcap	$8.78	Out of stock
15	HCWF0801	8mm flat washer	$0.58	Out of stock
16	HCWL0801	8mm Lock Washer	$0.58	Out of stock
17	HCBH0810	M8x65mm Wheel Pull Bolt	$1.58	Out of stock
18	HCBH1203	Bolt - swingarm pivot - cx50	$32.18	Out of stock
19	HCNL1201	M12 Swingarm Lock Nut	$3.18	Out of stock
20	WCMU0016	Axle Bolt 195mm	$32.18	Out of stock
21	HCWF1202	Axle Washer 22	$0.58	Out of stock
22	HCNS1201	M12 Lock Nut 23	$2.88	Out of stock
23	HCBF1040	M10x44 Flange Head Bolt 24	$7.68	Out of stock
24	HCCC0006	Clamp - Brake Hose 25	$1.08	Out of stock
25	HCPP0832	Fastener – ½” Self Tapping 26	$1.08	Out of stock
26	HCCC0005	Guide - Rear Brake Hose 27	$5.88	Out of stock
27	HCPP0834	Fastener - ¾” Self Tapping 28	$1.08	Out of stock
